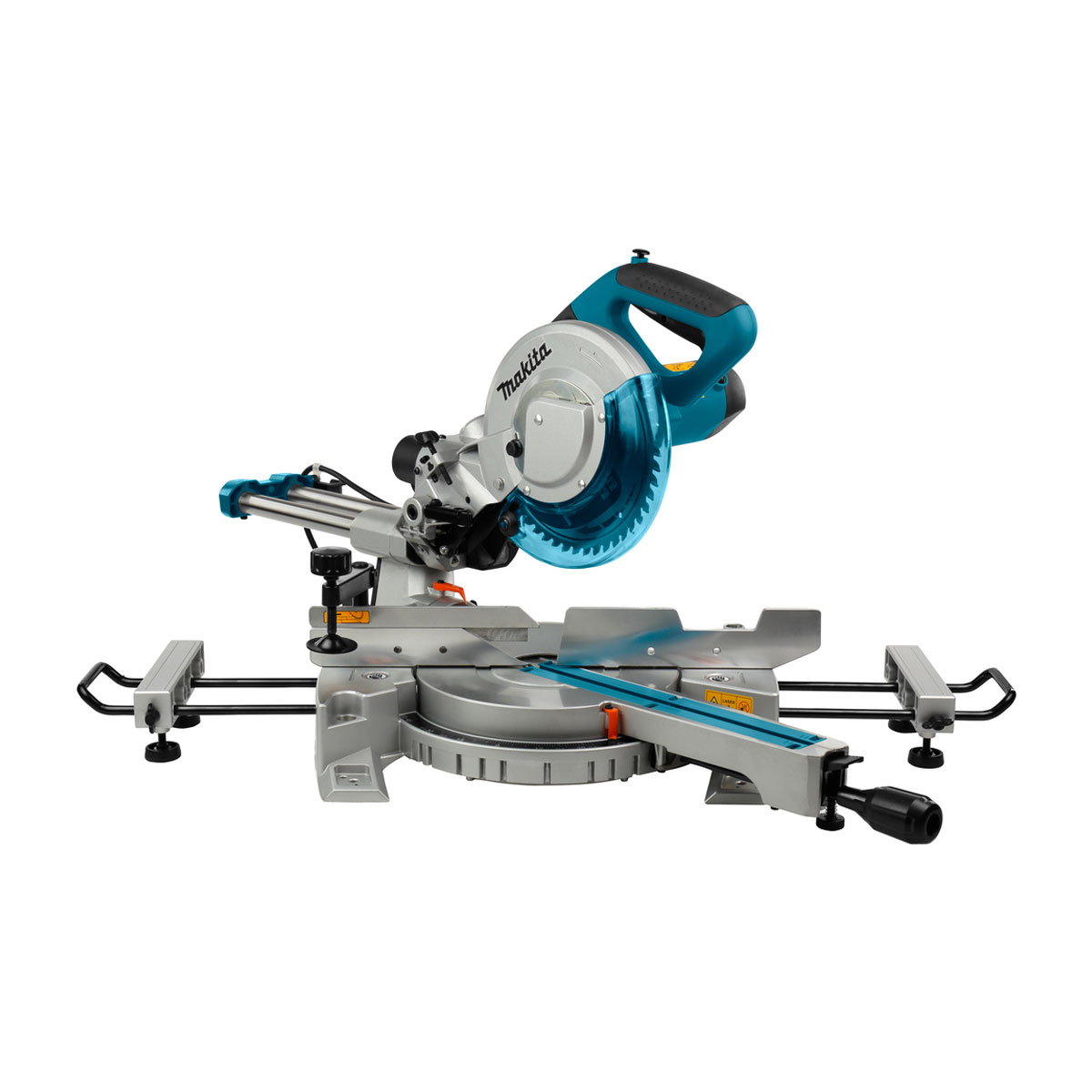

Makita LS0815FLN Slide Compound Mitre Saw 216mm 240V

Be the first to review this product

SKU: 221994 | EAN: 0088381868075
£279.95 £233.29
Out of Stock

The Makita LS0815FLN Slide Compound Mitre Saw 216mm 240V, updated version of the LS0815FL is designed for enhanced ease of use

Overview

The Makita LS0815FLN Slide Compound Mitre Saw 216mm 240V with laser guide an updated version of the LS0815FL, is designed for enhanced ease of use, aligning with current safety regulations by eliminating the previously mandatory lock against unintentional pressing.

This updated Makita LS0815FLN model stands out with its rigid cast alloy base and twin parallel slides, providing superior blade precision at various angles, a notable improvement over the LS0815FL's vertically aligned slides. It includes twin material support bars, a left side sub fence, a fixed right side fence, and a mountable stock clamping post for versatile support.

Equipped with a 216mm wood blade, this slide compound mitre saw from Makita offers cutting depths of 65mm at 90 degrees and 50mm at 45 degrees, powered by a 1,400W direct drive motor for high performance and low maintenance.

A linear ball bearing system and a motor powered laser marker ensure enhanced accuracy, while the sliding sub fence supports materials at angles from 90 to 48 degrees for precision and stability.

The mitre saw's design features a soft start mechanism, reducing startup force, and an LED job light for clear visibility.

Its high dust extraction rate allows direct connection to a Makita vacuum cleaner / dust extractor ensuring a clean workspace. The saw's compact design, coupled with a transport handle, facilitates easy movement between job sites and enhances portability for various tasks.

User comfort is prioritised with an ergonomic rubberised D-handle and a large precision machined aluminium base, alongside a see through blade guard and an oversized trigger switch for improved usability.

Suitable for a wide range of cutting tasks, the Makita LS0815FLN Slide Compound Mitre Saw handles up to 65mm radial crosscuts and double mitre cuts, with an adjustable depth stop for precise grooving.

The Makita LS10815FLN weighs only 14.2kg and includes a 2.5m 240v power supply cord.

Features

  • LED job light

  • Soft start mechanism

  • Motor powered laser guide
  • Ergonomic rubberised D-handle

  • Rigid cast alloy base & twin parallel slides

  • High dust extraction rate with Makita vacuum compatibility

In The Box

  • Makita LS0815FLN Slide Compound Mitre Saw 216mm 240V

  • Table Widener

  • Adjustment Angle

  • Socket Wrench 13mm

  • Material Clamp Vertical

  • Crosscut Saw Blade For Wood 216mm

  • Linen Dust Bag For Radial Crosscut Saw

  • Instruction Manual




Specifications

  • Voltage: 240 V
  • Continuous Input Power: 1400W
  • Saw Blade Diameter: 216mm
  • Saw Blade Arbor Hole: 30mm
  • Line Projection: Laser
  • Max. Saw Cap. (Height) 0°: 65x305mm
  • Max. Saw Cap. (Height) 45°: 65x215mm
  • No Load Speed: 5000 min
  • Leaf Thickness: 1.4 - 1.8mm
  • Volt (Voltage): 230 V
  • Power Consumption: 1400 Watts
  • Sound Pressure Level (L Pa ): 89 Db(A)
  • Uncertainty (K) (L Pa ): 3 Db(A)
  • Sound Power Level (L WA ): 100 Db(A)
  • Uncertainty (K) (L Wa ): 3 Db(A)
  • Vibration A H Sawing Wood: 2.5 M/S²
  • Vibration (K) Sawing Wood: 1.5 M/S²
  • Cable Length: 2.5 M
  • Sheet Thickness Min.: 1.4mm
  • Max. Sheet Thickness: 1.8mm
  • Saw Blade Ø Max.: 216mm
  • Tilt Left Max.: 48º
  • Tilt Right Max.: 5º
  • Miter Left Max.: 50º
  • Miter Right Max.: 60º
  • Cutting Height Max. - 0°: 65mm
  • Cutting Height Max. - 45°: 65mm
  • Cutting Height at Max. Width - 0°: 305mm
  • Cutting Height at Max. Width - 45°: 215mm
  • Max. No-Load Speed: 5000 Rotations p.m.
  • Length: 755mm
  • Width: 450mm
  • Height: 488mm
  • Net Weight: 14.2 Kg

Recommended For Use

  • Carpentry
  • Joinery
  • Flooring Installation
  • Cabinetry
  • Construction
  • Woodworking Workshops
