Harrison & Clough 0841M620180 Zinc Through Bolt M16 x 180mm
Harrison & Clough 0841M620180 Zinc Through Bolt M16 x 180mm

Harrison & Clough 0841M620180 Zinc Through Bolt M16 x 180mm

Be the first to review this product

SKU: 402506
£1.68 £1.40
Estimated 10 - 14 Working Days Delivery
- +

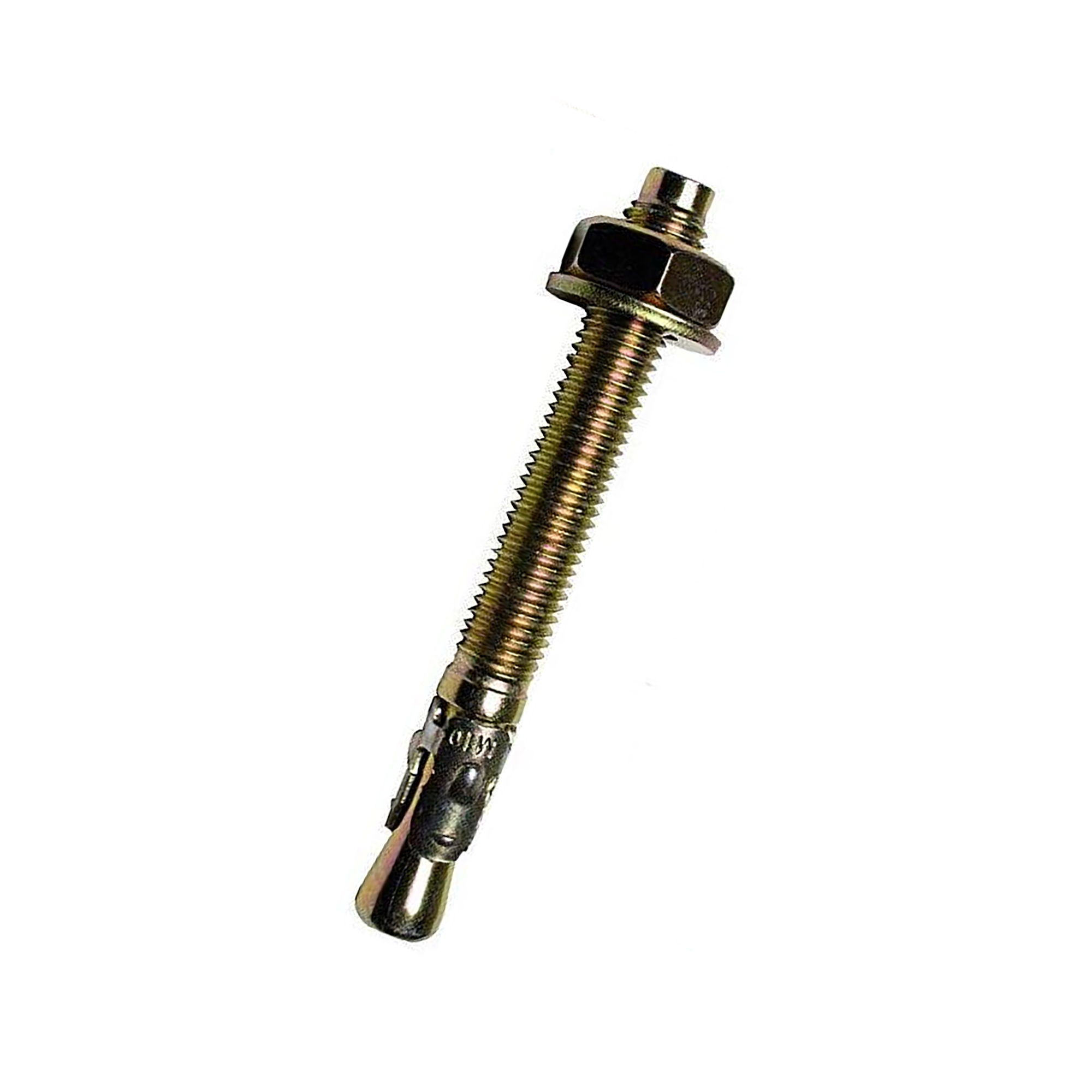

The Harrision & Clough 0841M620180 is a zinc plated through bolt with a 16mm diameter and a 180mm anchor length.

Overview

The Harrision & Clough 0841M620180 is a zinc plated through bolt with a 16mm diameter and a 180mm anchor length.

It has been designed with a strike cap to prevent thread damage and thus extend its service life.

For extra practically, this through bolt is packed with the nut and washer pre-assembled to allow quick and easy insertion and tightening.

In addition, each through bolt is equipped with a large, 135mm thread to enable greater flexibility and use of the anchors.

Features

    • Nut and washer pre-assembled to bolt
    • Strike cap to prevent thread damage
    • Zinc plated
    • 135mm thread for more flexibility and use of the anchors

Specifications

  • Size: M16 x 180
  • Hole Diameter: 16mm
  • Anchor Length: 180mm
  • Thread Length: 135mm
  • Minimum Hole Depth: 80mm
  • Embedment Depth: 70mm
  • Fixture Clearance Hole: 18mm
  • Centre Spacing: 165mm
  • Structure Thickness: 110mm
  • Rec Tensile Load: 8.00kN
  • Rec Shear Load: 10.40kN
  • Rec Tight Torque: 85Nm

Recommended for Use

  • Fixing & Fastening Tasks
