Evolution S355CPS 355mm TCT Cut Off Saw 240v + 005-0002 Universal Chop Saw Stand

Be the first to review this product

SKU: 220022 | EAN: 0849713000132
£368.99 £307.49
Multi-buy (SKU 220022 | EAN 0849713000132 )
  • Buy 1
    £368.99 £307.49
  • Buy 2
    £361.61 £301.34
    Save £6.15
  • Buy 3
    £357.92 £298.27
    Save £9.22
In Stock -
- +

The Evolution S355CPS is the newly upgraded version of the previous model (EVOSAW355) 355mm TCT Steel Cut Off Saw 240V. A leader in exceptional cutting technology thanks to its ability to perform accurate and smooth cuts in a range of metal materials using the supplied TCT blade and can execute cuts 4 times faster than abrasive saws.

Evolution S355CPS 355mm TCT Cut Off Saw 240v + 005-0002 Universal Chop Saw Stand

£307.49

Overview

The Evolution S355CPS 355mm TCT Steel Cut Off Saw 240V is the newly upgraded version of the previous model (EVOSAW355). A leader in exceptional cutting technology thanks to its ability to perform accurate and smooth cuts in a range of metal materials using the supplied TCT blade and can execute cuts 4 times faster than abrasive saws.

The new and improved saw boasts a number of additional features, including a quick release clamp, ambidextrous ergonomic trigger, on-board tool storage, heavy duty square thread bar, bench mounting holes in the base, 45° locking pin and Oilite bushes.

With a powerful 2200W motor that can provide a no load speed of 1550rpm, this steel cut off saw can effortlessly glide through mild steel materials such as steel plate, square tube, angle iron, pipe, tube and metal roofing.

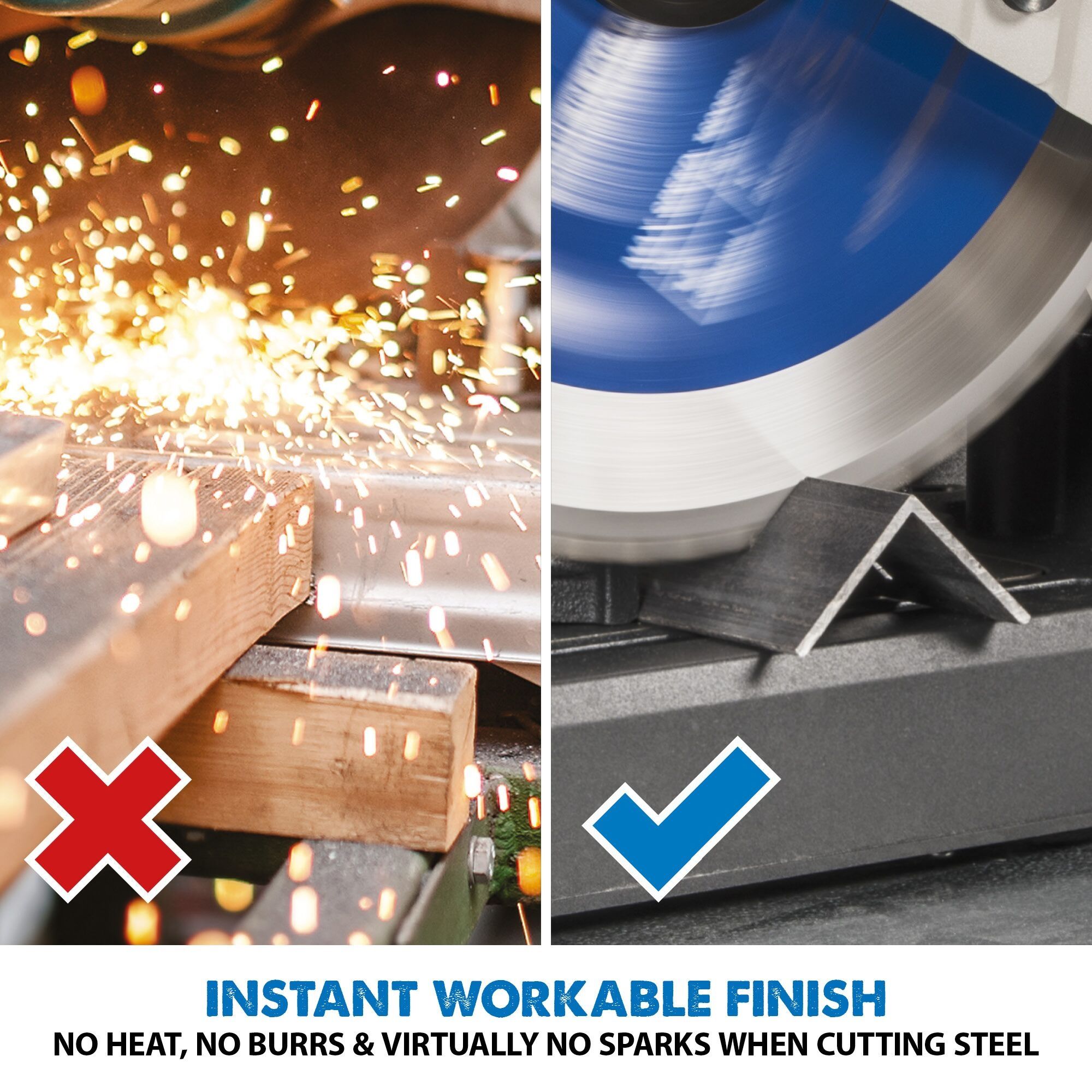

There is virtually no heat or sparks produced during operation which means that after a cut has been achieved, the user is left with a smooth, burr-free and instantly workable finish to the workpiece.

It is equipped with a high performing, powerful torque gear-box that helps to decrease pressure on the motor and enhance the tool’s overall performance.

The user can perform accurate and versatile cuts from 0 - 45° using the fast action swivel vice and the TCT blade has a great cutting capacity of 95 x 180mm thanks to its large 355mm diameter.

The S355CPS is excellent value for money and very economical as the user can achieve up to 1000 cuts before the TCT steel blade needs replaced.

Additionally, it features an integrated pull-out collection tray for easy disposal of excess metal chips which enables the user to maintain a clean and tidy workspace, and a safety guard for increased user safety.

Evolution have designed a number of optional blades that are compatible with their TCT Steel Saw so that the user can perform cuts in stainless steel, thin steel and aluminium too (must be purchased separately).

The Evolution 005-0002 TCT Universal Chop Saw Stand is a heavy duty, durable stand with a unique clamping system that makes it compatible with all Evolution chop saws as well as most other leading brand chop saws.

With extendable left and right support arms that reach a total width of 106cm, the stand can properly support long workpieces for accurate and safe cutting action.

In addition, the supports’ height can be adjusted, making it easy to customise the setup to suit any saw and a wide range of materials. The supports also feature a super handy built in end stop for quick repeat cutting.

The stand table height is also widely adjustable, as it features telescopic legs with 5 different height settings, ensuring a comfortable, personalised setup for every user.

Featuring a collapsible design complete with folding legs, retractable arms and a handy carry handle, the stand it incredibly easy to transport and store when not in use.

Its heavy duty metal construction and sturdy base can support weights of up to 225kg.

The 005-0002 can be assembled in seconds thanks to its tool free adjustments, quick-lock pins and unique clamping system. With this quick and easy setup, you’ll be able to get to work in no time.

Compatible with Evolution S355CPS, EVOSAW355, R355CPS, RAGE2, RAGE4, and with most other leading brand chop saws.

Features

Evolution S355CPS 355mm TCT Steel Cut Off Saw 240v

    • Ideal for use in a range of mild metal materials using the supplied TCT blade
    • Generated by a powerful 2200W motor
    • Quicker, safer, more accurate and more economical than an abrasive saw
    • Produces virtually no sparks or heat for a smooth, burr-free and instantly workable finish
    • Equipped with a hi-torque gear box that can produce 1550rpm
    • Fast action swivel device enables the user to perform accurate cuts from 0-45degrees
    • Supplied with a large 355mm TCT blade with a cutting capacity of 95 x 180mm

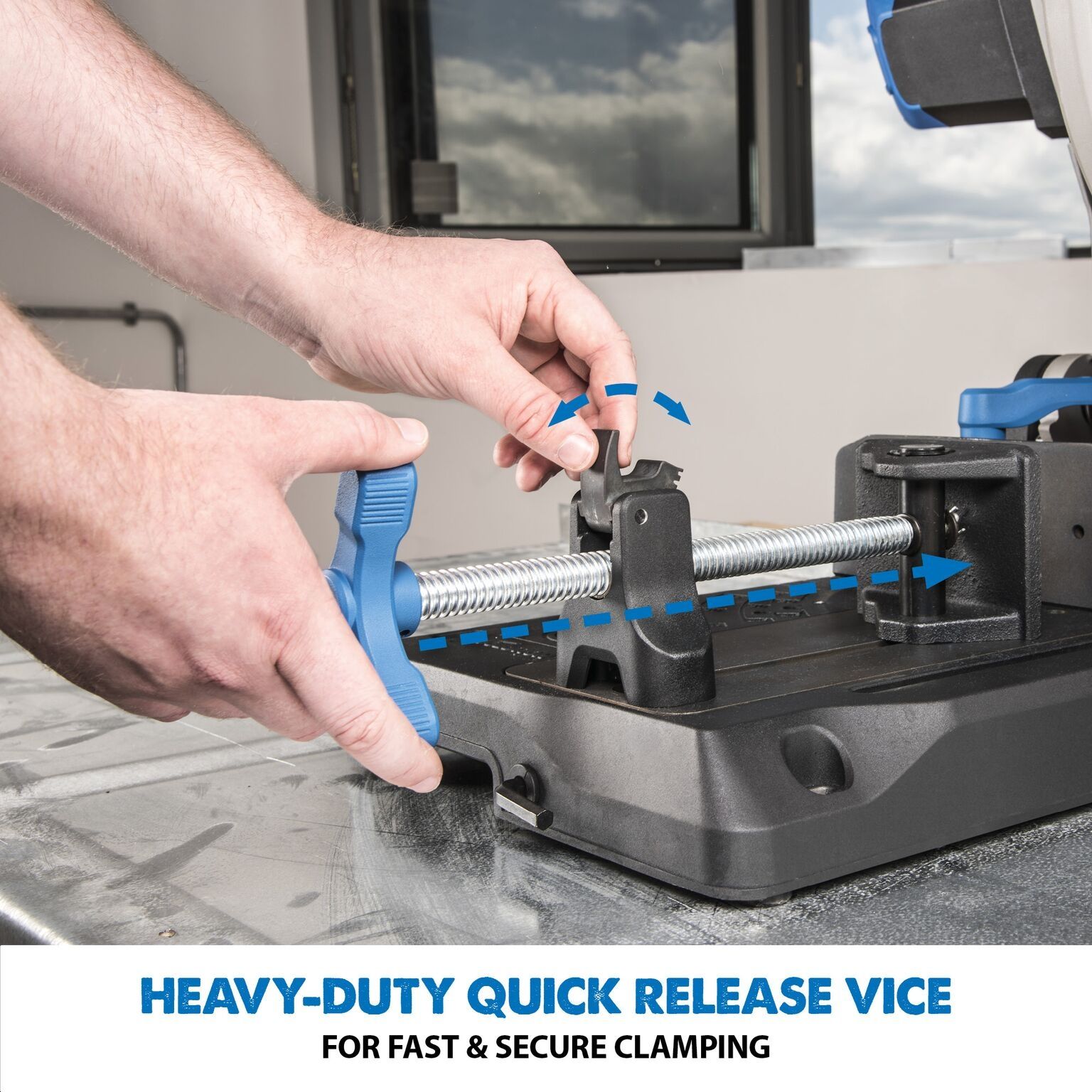

    • Quick release vice for fast and secure clamping
    • Integrated pull-out collection tray for easy disposal of metal chips
    • Additional Evolution blades are available and can be used in conjunction with the saw to cut through stainless steel, thin steel and aluminium

Evolution 005-0002 TCT Universal Chop Saw Stand

    • Fits most leading brands
    • Height adjustable table
    • Extendable support arms
    • Height adjustable supports
    • Built in end stop
    • Collapsible design
    • Quick and easy setup

In the Box

    • Evolution S355CPS 355mm TCT Steel Cut Off Saw 240V
    • 1 x Evolution M355TCT-66 355mm Steel TCT Blade
    • 1 x Hex Key 8mm (Blade Change)
    • 1 x V Clamp Jaw
    • Evolution 005-0002 TCT Universal Chop Saw Stand:
    • 1 x Main base unit with universal mounting table
    • 1 x Adjustable extension arms
    • 2 x Height adjustable workpiece support bars
    • 2 x Fixed clamps
    • 2 x Adjustable clamps
    • 1 x Carry handle
    • 1 x Screw set
    • 1 x Screw rod rotating handle
    • Instruction Manuals

Specifications

Evolution S355CPS 355mm TCT Steel Cut Off Saw 240V

  • Voltage: 240V
  • Motor (240V 50Hz): 2200W
  • Speed No Load: 1550 rpm
  • Max. Bevel: 45°
  • Blade Diameter: 355mm
  • No. of Blade Teeth: 66
  • Bore: 25.4mm
  • Kerf: 2.4mm
  • Mild Steel Plate (Max Thickness): 6mm
  • Stainless Steel Plate (Max Thickness): 5mm
  • Square Tube at 90° (Mild Steel): 120mm
  • Square Tube at 45° (Mild Steel): 80mm
  • Rectangle Tube at 90° (Mild Steel): 95mm x 180mm
  • Rectangle Tube at 45° (Mild Steel): 78mm x 110mm
  • Round Tube at 90° (Mild Steel): 130mm
  • Round Tube at 45° (Mild Steel): 105mm
  • Wood at 90° (Nominal Size): 89mm x 184mm
  • Wood at 45° (Nominal Size): 64mm x 89mm
  • Minimum Cut Off Piece Length: 8mm
  • Sound Pressure Level LPA: 108 dB(A) K:3dB(A)
  • Sound Power Level LWA: 121 dB(A) K=3 dB(A)
  • Product Dimensions (H x W x L): 410mm x 310mm x 530mm
  • Cable Length: 3m
  • Product Weight: 23 kg

Evolution 005-0002 TCT Universal Chop Saw Stand

  • Table Top Size (W x D): 460mm x 600mm
  • Min. Chop Saw Width: 220mm
  • Max. Chop Saw Width: 322mm
  • Stand Min. Height: 595mm
  • Stand Max. Height: 815mm
  • Stand At Floor Width: 834mm
  • Stand At Floor Depth: 963mm
  • Product Weight: 16kg
  • Load Capacity: 225kg
